The DC Arc Flash Analytics v1.0 is now available by mail in CD format or via download from our web server. Please select your preferred media format from the drop down menu below. You can make the payment online using any major credit card or PayPal balance. We will send you the installation package and your unique registration key same day or day after you placed the order.

We also accept Purchase Orders, Wire Transfer, Interac Email Money Transfer (Canada), International Money Orders and Certified Cheques.

Price: US $240.00

Select Media CD format Download from webserver End User First & Last Names Company Name	More Information

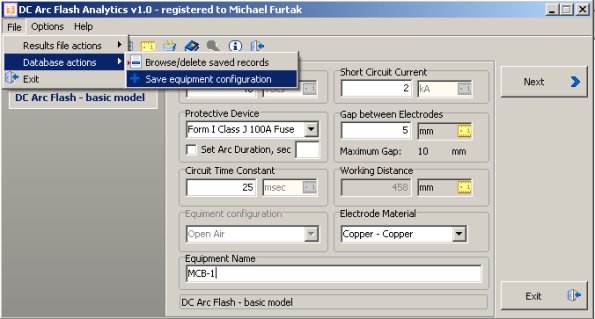

Equipment configuration can be saved for future reference. Specify Equipment Name and select File -> Save Equipment Configuration menu option to save the equipment configuration.

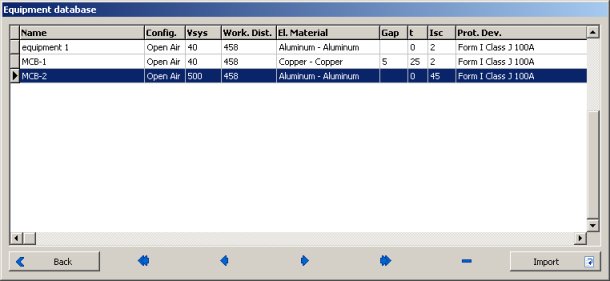

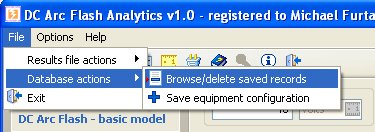

Select File -> Browse Saved Records menu option to open up database containing saved equipment configurations.

Use navigation buttons to select a record and click on [Import] button to copy the data into the program main window.

By pressing [Save Results] button, the results will be saved to a text file for future reference or printing. You can save results for different jobs under different names.

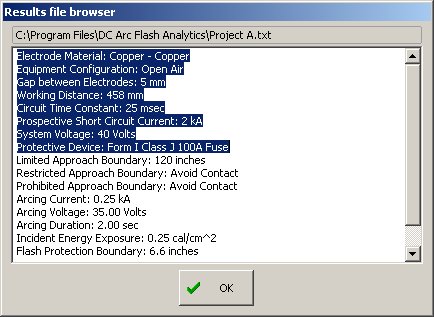

By choosing Open from File -> Results File Actions menu you can now open an existing results file, inspect its current content, do simple editing operations including Cut, Copy and Paste to and from the clipboard, Save and Print.

If you need more complex editing, import the file into your favorite text manipulation processor ( MS Word as an example ) and do what need to be done.

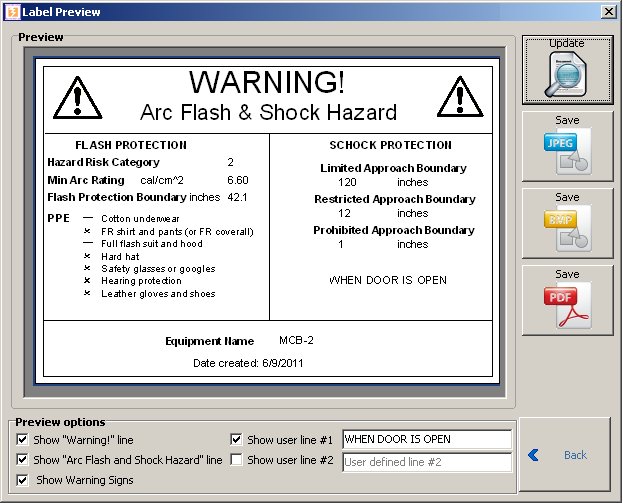

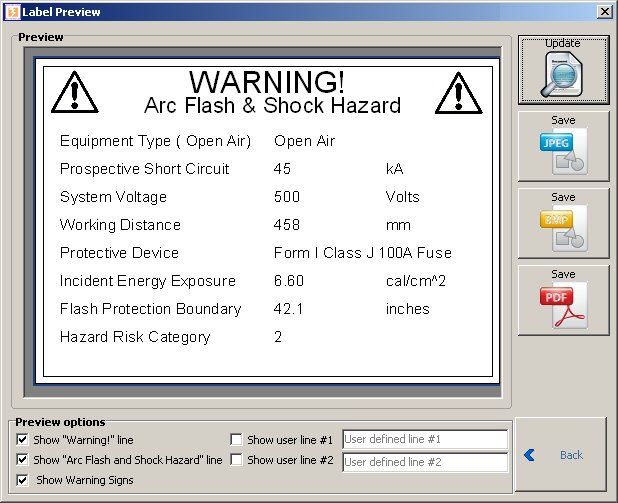

The program allows to save generated warning labels on hard drive in electronic .JPG,.BMP and PDF formats.

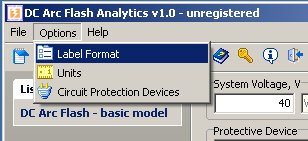

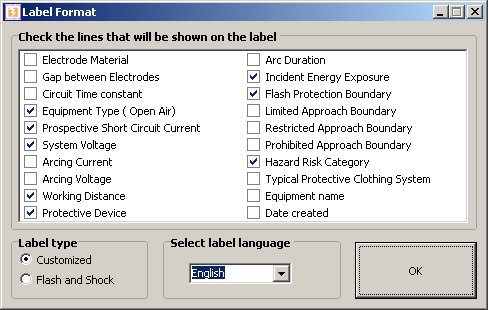

Click on Label Format from Options menu to select label type ( Customized or Flash & Shock) and specify language (now available in English, French and Spanish ), equipment information, arc flash hazards and creation date information displayed on warning label.

You can also and add in few more lines of text information onto the label and assign unique Equipment Name for each label before you save them on your hard drive.

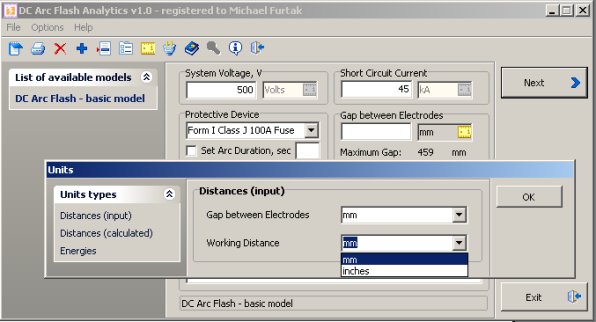

By clicking on Options -> Units menu option, metric (mm, Joules), imperial units (inches, calories), or even a mix of both, can be specified for Gap between Conductors, Working Distance, Flash Protection Boundary, Limited, Restricted and Prohibited Boundaries, and Incident Energy.

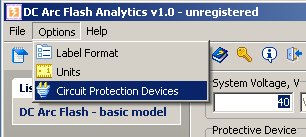

Select Options -> Circuit Protection Devices and then click on Add New Devices to open up Add Protective Device dialogue screen.

Fill out the form and click [Accept] button below to add a new device into the database.

Please note the device characteristics should be uninterruptible function 0.01 to 2 sec interval. Most accurate results are achieved if the device time-current characteristics can be represented as power function on the above time interval. Visually, time-current characteristics should represent more or less straight line in 0.01 to 2 sec range on a log-log scale.
